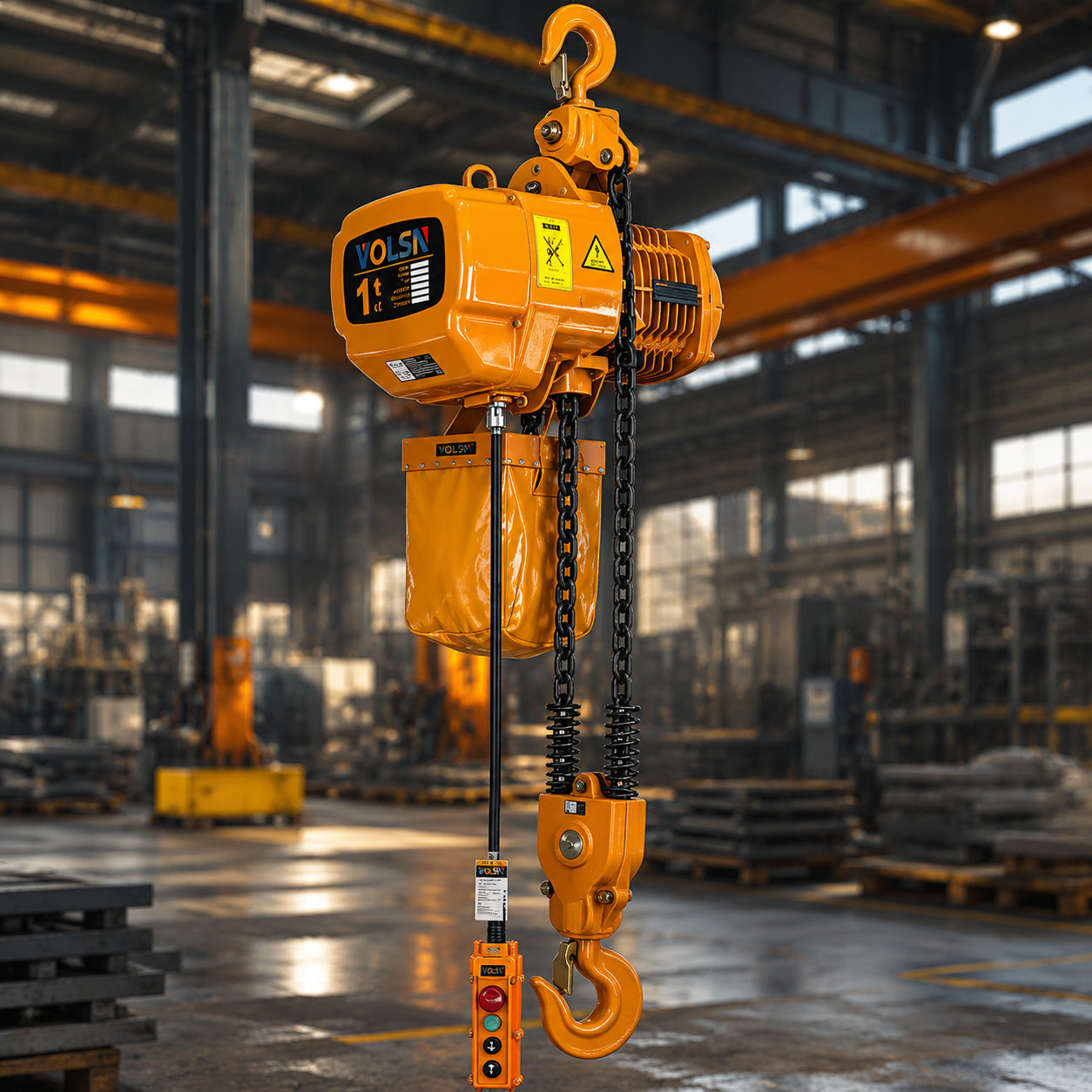

HHBB Fixed Electric Chain Hoist

Reliable Vertical Lifting Solution for Fixed Workstations

HHBB Fixed Electric Chain Hoist is designed for safe and efficient vertical lifting operations in factories, workshops, and industrial facilities.

With a fixed top hook suspension design, it provides a simple and reliable lifting solution for applications where loads need to be lifted repeatedly at a fixed position.

Key Features

✓ Fixed Hook Suspension Design
Direct installation on suitable supporting structures without trolley system.

✓ Compact & Space-Saving Structure
Ideal for workshops and production areas with limited installation space.

✓ Smooth Electric Lifting Performance
Provides stable lifting and precise load control.

✓ Wide Industrial Applications
Suitable for machine maintenance, mold handling, equipment installation, and production lines.

Lifting Capacity: 0.5–10 Ton
Lifting Height: Customized
Application: Factory | Workshop | Warehouse | Maintenance

Contact Volsn for Your Lifting Solution

Category:

Reliable Fixed Lifting Solution for Industrial Applications

Product Overview

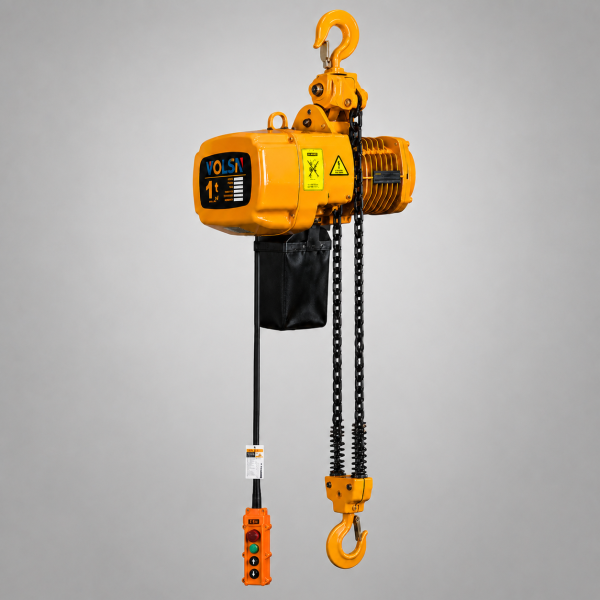

The HHBB Fixed Electric Chain Hoist is a compact and reliable lifting device designed for vertical lifting operations in factories, workshops, warehouses, and industrial facilities.

With a fixed top hook suspension design, HHBB electric chain hoist can be directly installed on suitable supporting structures without a trolley system, making it an ideal solution for fixed-position lifting applications.

It is widely used for:

  • Machine maintenance
  • Mold handling
  • Equipment installation
  • Workshop material lifting
  • Production line lifting operationsKey Features

Technical Parameters

Volsn Model Capacity T Lifting Height m Lifting Speed m/min Power kW Rotation Speed r/min Phases Voltage V Frequency Hz/s
HHBB005-01 0.5 3/9 6.8 11 47 36 15 115
HHBB01-02 1 3/9 3.4 14 55 42 20 142
HHBB01-01 1 3/9 6.6 18 74 53 30 172
HHBB02-01 2 3/9 6.6 18 74 53 30 172
HHBB02-02 2 3/9 3.3 20 80 55 35 208
HHBB03-01 3 3/9 5.4 25 97 65 35 234
HHBB03-02 3 3/9 4.4 25 97 65 55 250
HHBB03-03 3 3/9 2.2 30 112 81 50 303
HHBB05-02 5 3/9 2.7 30 137 95 70 352

Size Specification

Volsn Model Capacity T H A B D E I J L M N Chain
HHBB005-01 0.5 540 455 240 285 165 Ø34 28 25 19 19 Ø6.3
HHBB01-02 1 575 455 240 285 165 Ø34 28 25 19 19 Ø6.3
HHBB01-01 1 650 520 260 300 176 Ø42 32 32 24 24 Ø7.1
HHBB02-01 2 800 615 295 430 265 Ø49 40 40 30 30 Ø10.0
HHBB02-02 2 835 520 260 300 236 Ø49 40 40 30 30 Ø7.1
HHBB03-01 3 845 615 295 430 265 Ø59 48 48 35 35 Ø11.2
HHBB03-02 3 950 615 295 430 320 Ø59 48 48 35 35 Ø10.0
HHBB03-03 3 950 520 260 350 205 Ø59 48 48 35 35 Ø7.1
HHBB05-02 5 1030 615 295 430 325 Ø60 48 48 43 43 Ø11.2

Fixed Hook Suspension Design

The fixed upper hook allows direct installation on beams or lifting points.

Advantages:

  • Simple installation
  • Stable lifting operation
  • Lower maintenance requirements
  • Cost-effective solution

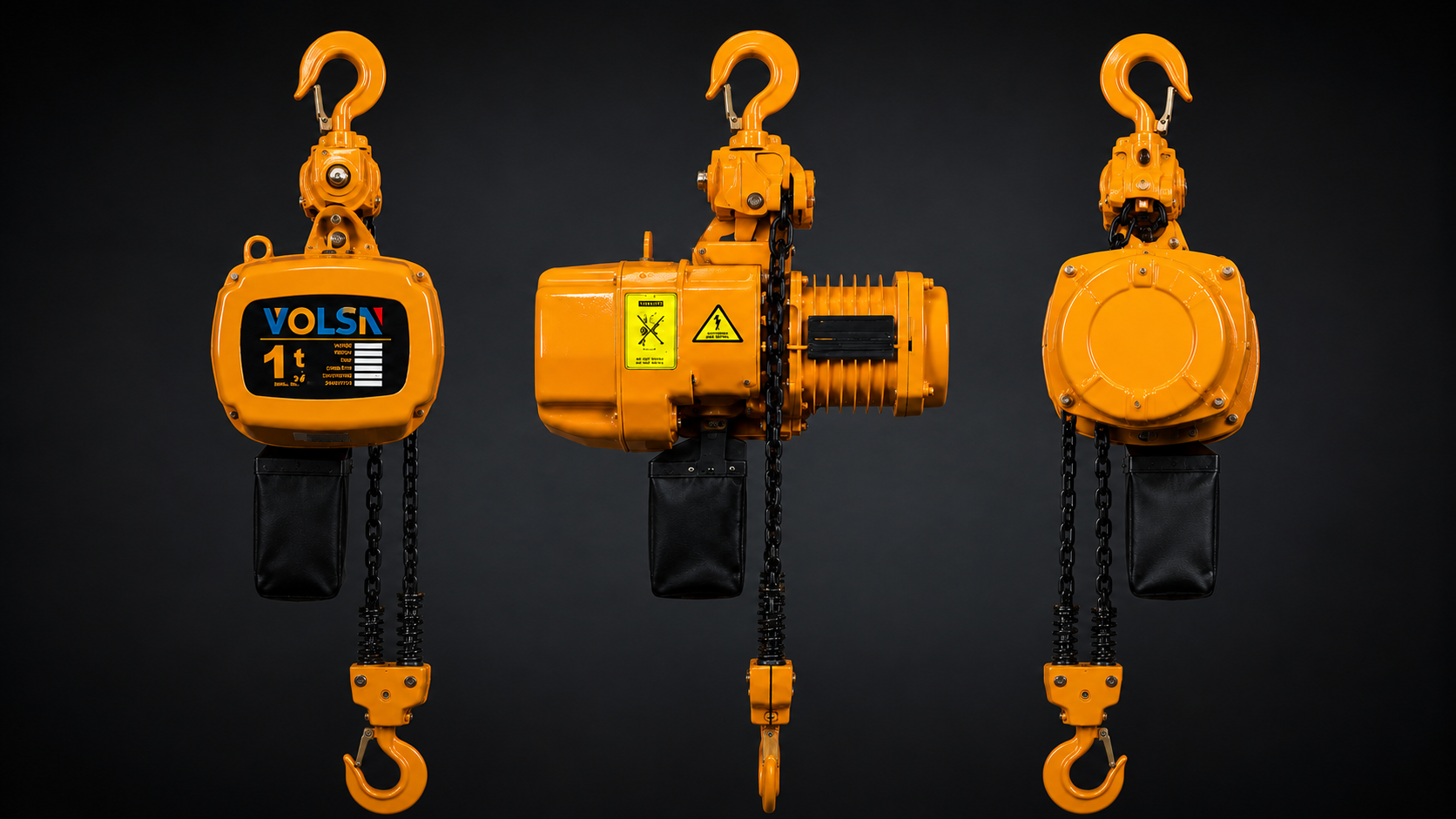

Compact and Space-Saving Structure

The compact body design makes HHBB suitable for workshops and production areas where installation space is limited.

It provides efficient lifting performance while requiring minimal installation space.

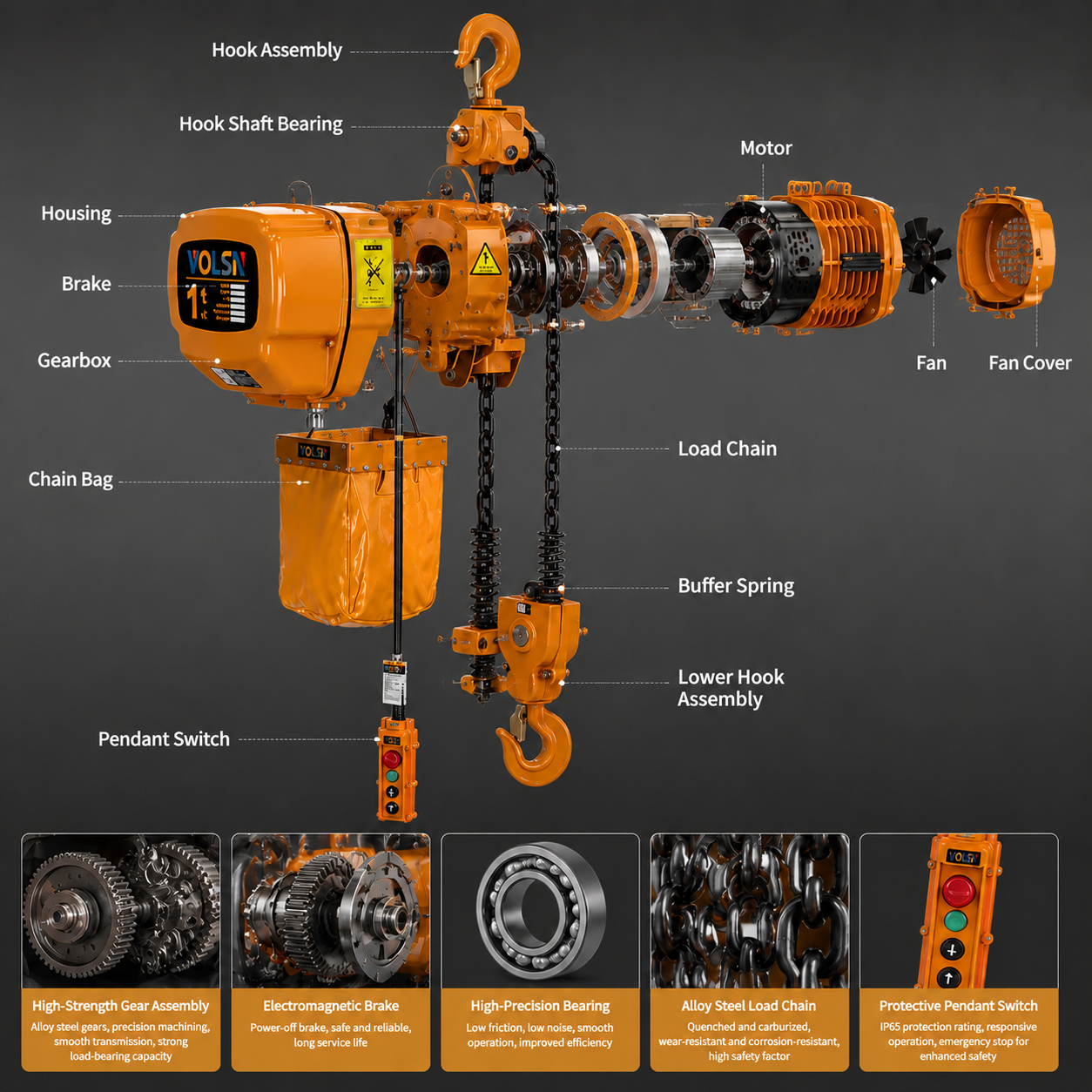

Reliable Electric Lifting Performance

HHBB electric chain hoist provides smooth and controlled lifting through:

  • Durable load chain
  • High-strength lifting hook
  • Reliable braking system
  • Pendant control operation

Safe Industrial Operation

Designed for industrial lifting applications with safety features including:

  • Overload protection
  • Load holding brake system
  • Safety hook design

Typical Applications

Machine Workshop

Used for lifting:

  • Machine components
  • Spare parts
  • Heavy tools

Mold Handling

Suitable for:

  • Mold installation
  • Mold replacement
  • Maintenance operations

Fixed Workstations

Ideal for applications where loads are lifted repeatedly at the same position.

Fixed Type vs Trolley Type

Fixed Type HHBB Trolley Type Hoist
Vertical lifting only Vertical + horizontal movement
Simple structure More complex system
Lower investment cost Larger working coverage
Best for fixed workstations Best for moving loads

Choose the fixed type when your lifting point remains unchanged.

Why Choose Volsn HHBB Electric Chain Hoist?

Volsn provides industrial lifting solutions for global distributors, retailers, and professional users.

Our advantages:

  • Stable manufacturing capability
  • Professional lifting product experience
  • OEM customization support
  • Technical application guidance

Request A Suitable Lifting Solution

Tell us:

  • Required lifting capacity
  • Lifting height
  • Working environment
  • Application details

Our team will help you select the right electric chain hoist solution.
